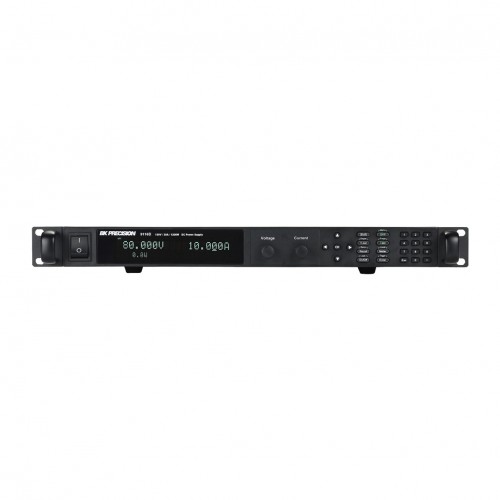

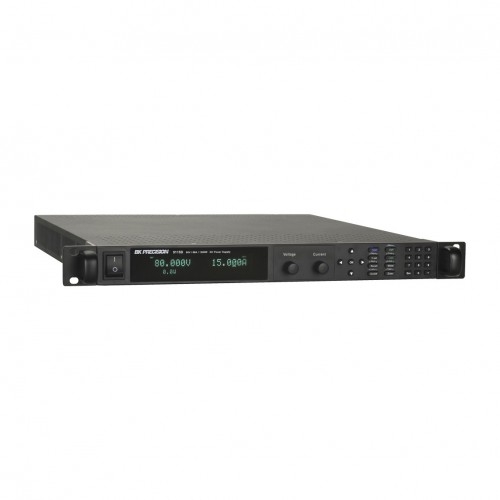

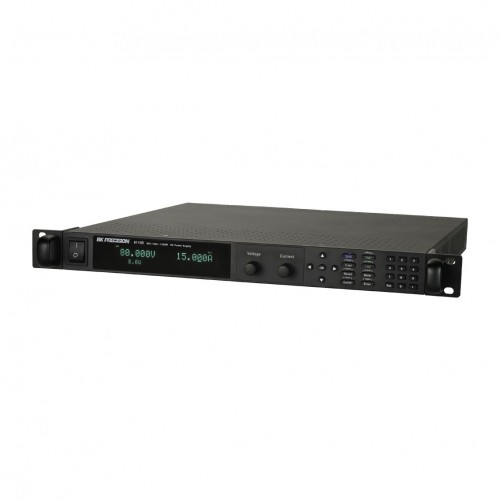

Any 9115 Series model can replace several supplies on your bench or in your rack. Unlike conventional supplies with fixed output ratings, these multi-range power supplies automatically recalculate voltage and current limits for each setting, providing full output power in any Volt/Amp combination within the rated voltage and current limits.For benchtop applications, this series provides a numerical keypad for direct data entry along with convenient cursors and analog style knobs to quickly make incremental voltage or current changes. Systems integrators benefit from the standard USB (USBTMC-compliant), RS-232, GPIB, RS-485, and LAN (9117 only) interfaces supporting SCPI commands.The 9115-AT provides automotive power test waveforms compliant to DIN 40839 and ISO 16750-2 standards that can simulate common test conditions for electrical and electronic devices installed in automobiles.

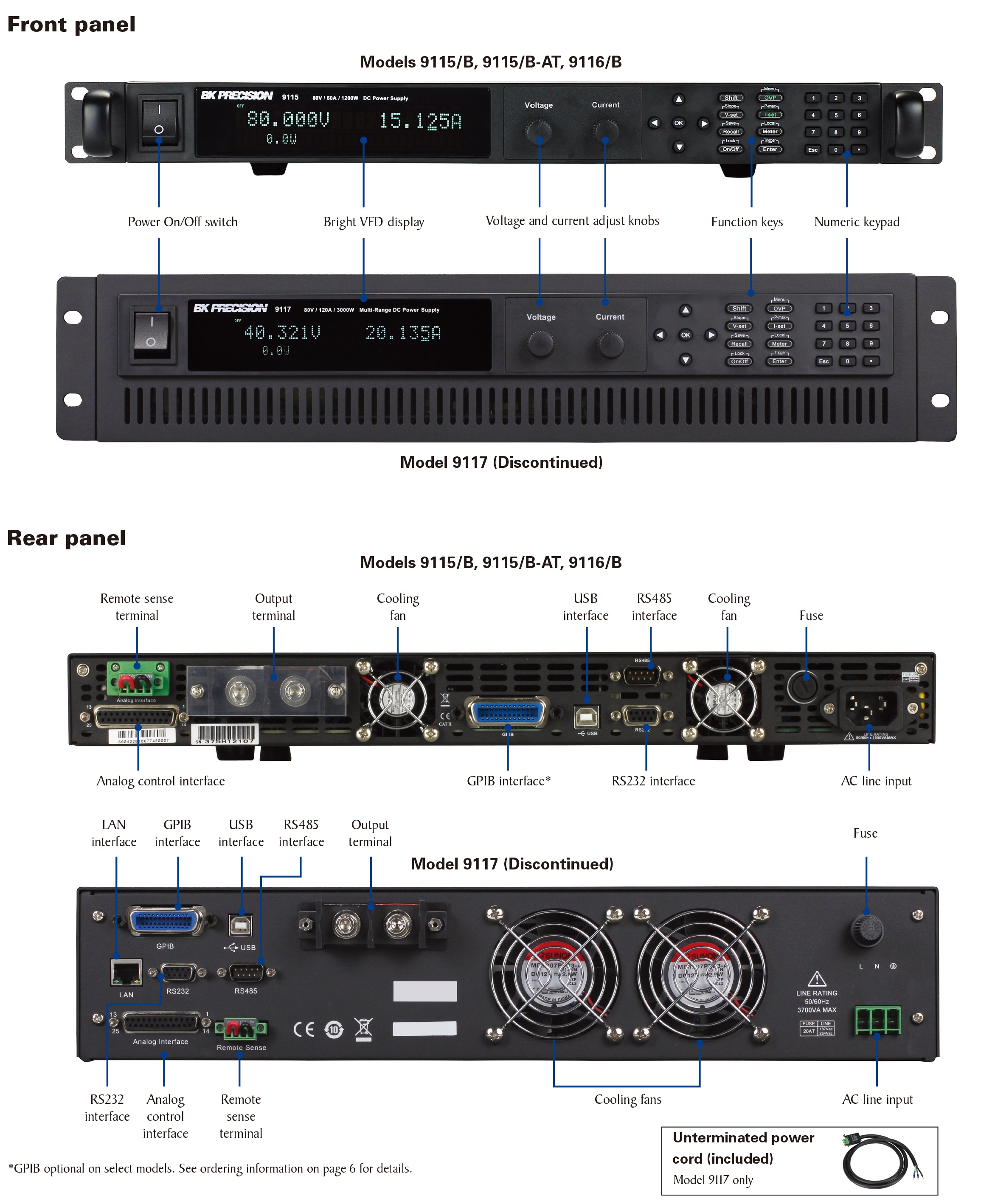

제품특징

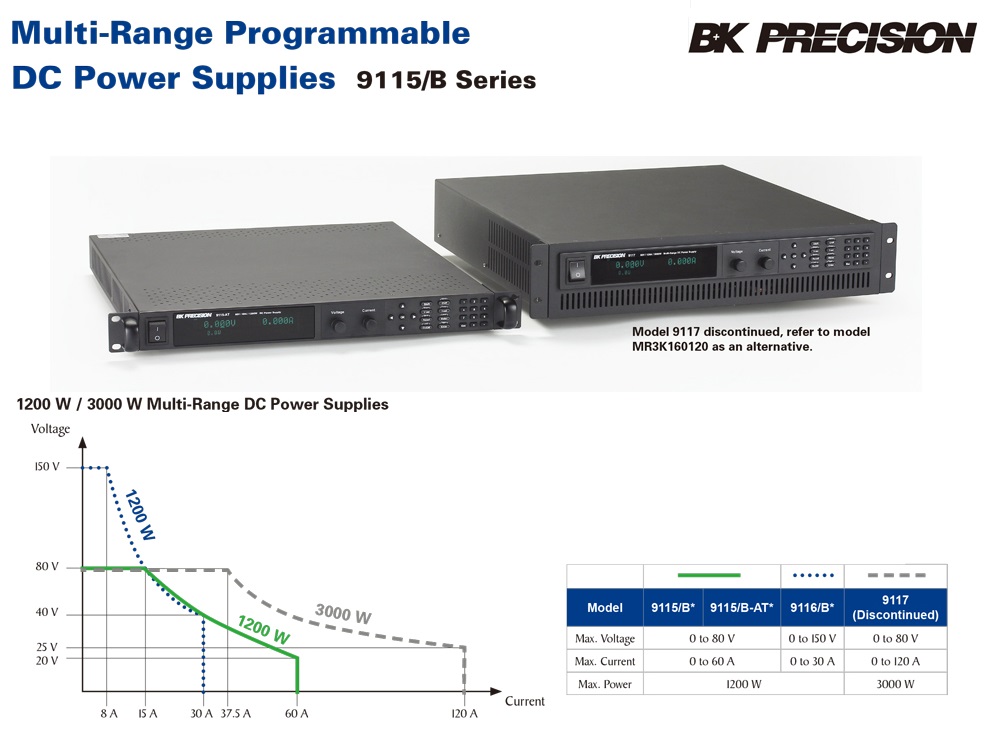

   • Multi-ranging operation (output up to max power rating within maximum voltage and current rating)

   • Compact, high density, 1U rackmount form factor (2U for 9117)

   • High programming and readback resolution

   • Adjustable voltage rise and fall times

   • Sequence programming (internal list mode for 9115, 9115-AT, and 9116)

   • Store and recall up to 100 instrument settings

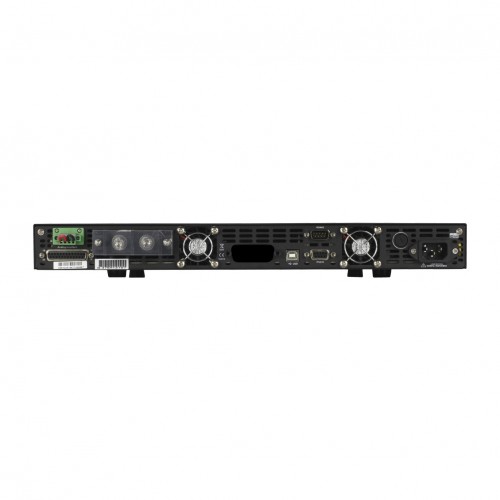

   • Standard USB (USBTMC-compliant), RS-232, GPIB, RS-485, and LAN (9117 only) interfaces supporting SCPI commands for remote control

   • Analog interface with control and monitoring functions

   • Remote sense

   • Overvoltage protection (OVP), overpower protection (OPP), overtemperature protection (OTP), and key-lock function

   • Softpanel for remote control, test sequence generation, and data logging. This software also integrates with Data Dashboard for LabVIEW apps enabling iOS, Android or Windows 8 compatible tablets or smart phones to remotely monitor select measurement indicators
